Ladder Ties

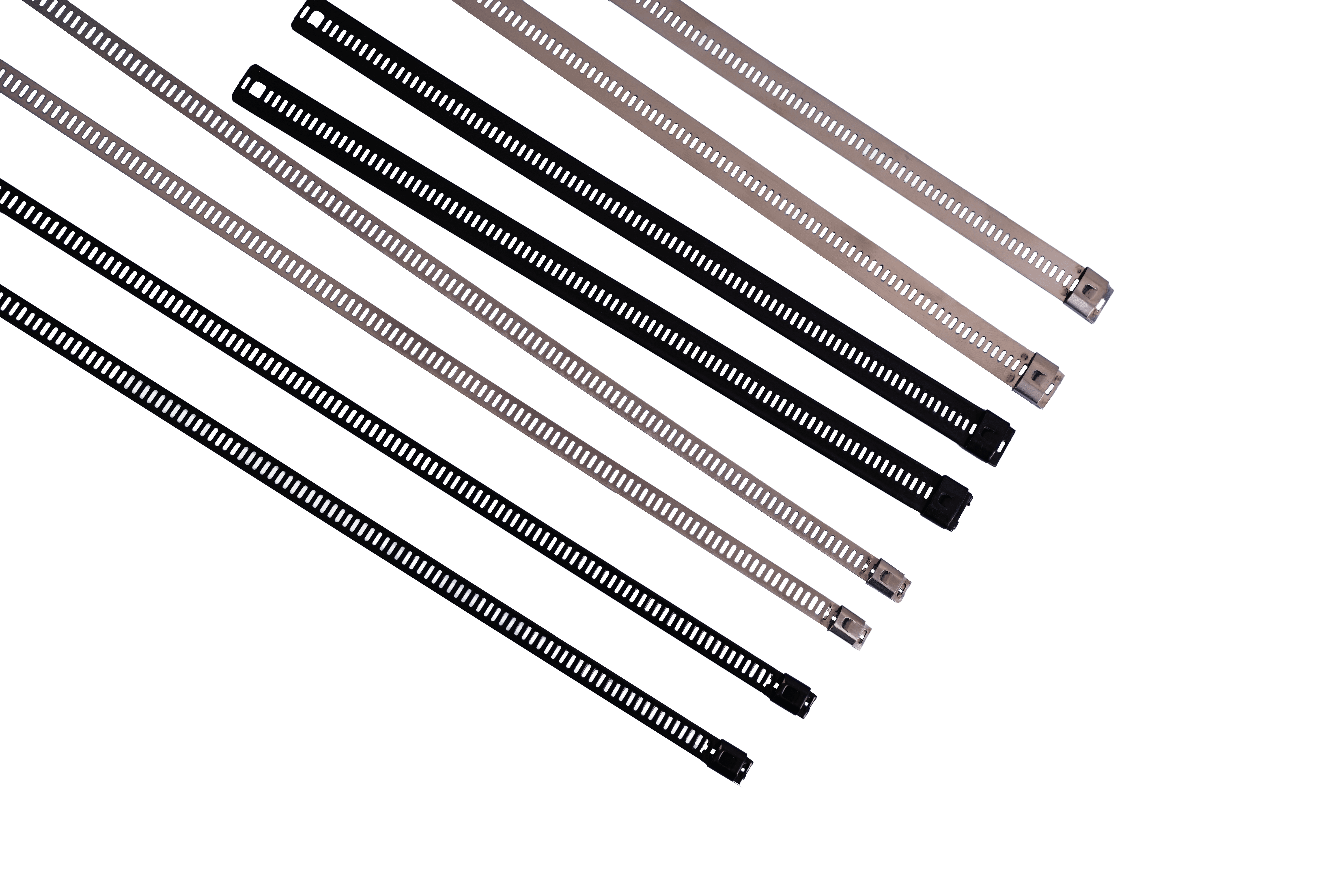

Available in grades 316 & 304 coated or un-coated, in 7 mm or 12 mm widths.

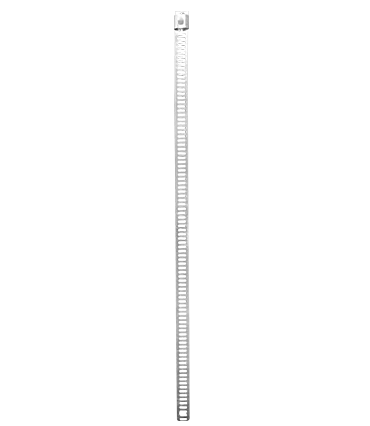

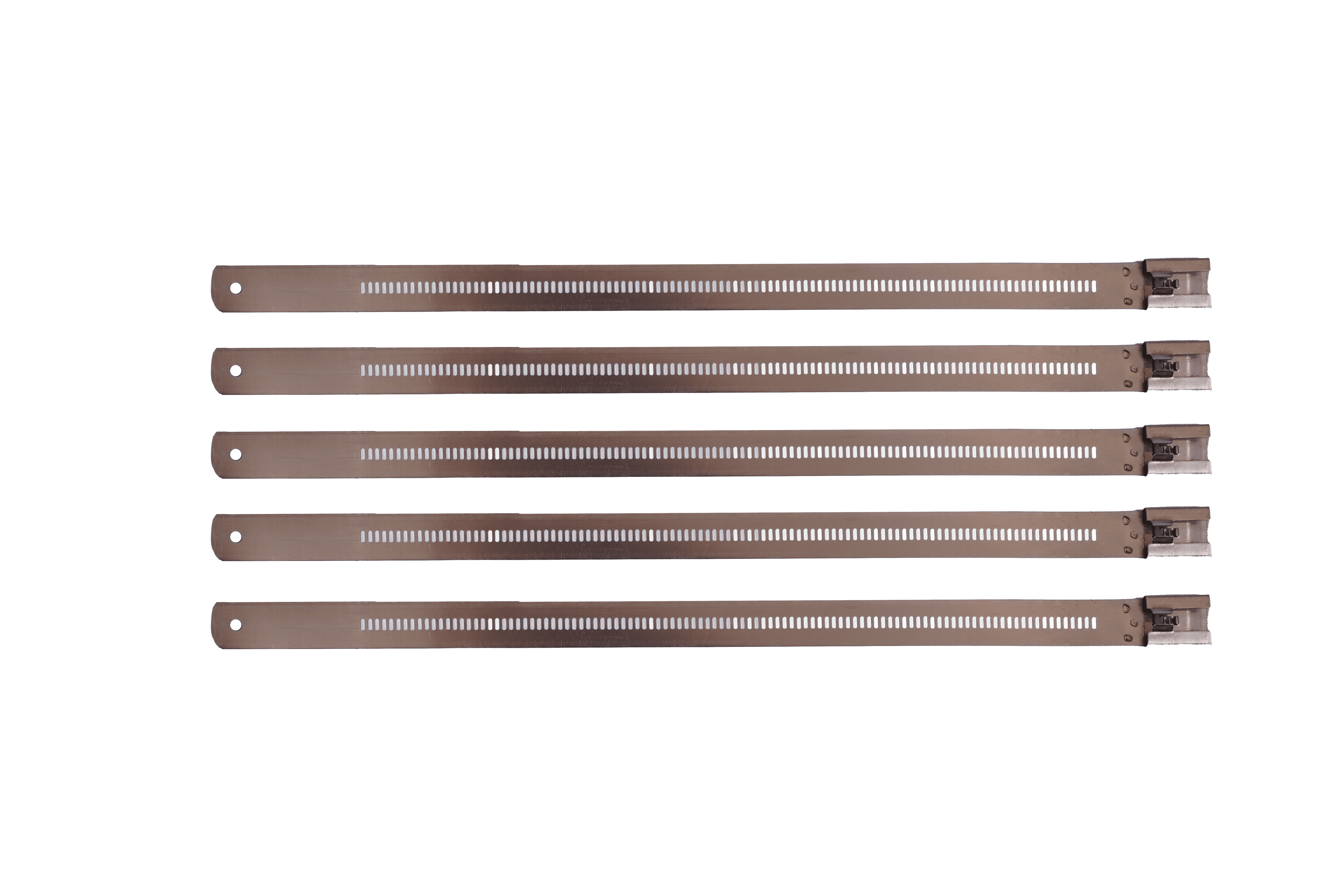

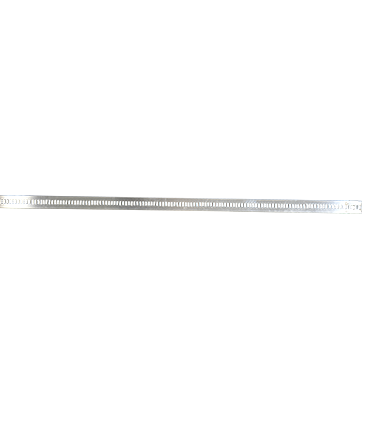

This Ladder tie is self-locking for easy application, even by hand. The locking system gives a strong hold. Tool available for increasing locking tension. Coated ties are recommended for added resistance to corrosion, chemical and weathering effects.

Normal operating range for un-coated type is -40° C to +300° C. For coated version normal operating range is -60° C to 165° C.

  • Strong self-locking ratchet mechanism, requires no time-consuming crimping or folding operations.
  • Flat and low-profile head (no sharp edge), for easy installation.
  • Corrosion resistant 316 grade stainless steel (marine grade) for high mechanical and chemical durability.
  • Uncoated version for high temperature applications.
  • Increased usable length (slots up to the end of the tail), allows larger bundle diameters with the same tie length.
  • Larger slot at the end, allows, the use of a hook-type tool.
  • Coated applications installation of cables and pipes in extreme conditions and hazardous areas, indoor and outdoor, such as petrochemical and food processing industries, PowerStation, mining, shipbuilding, offshore and other aggressive environments
STAINLESS STELL CABLE TIES
TYPE : LADDER - COATED & UNCOATED
Grade : 316 or 304
Part No. Length mm Width mm Max. Bundle Dia mm
ST100/7 100 7 25
ST150/7 150 7 45
ST200/7 200 7 60
ST225/7 225 7 70
ST250/7 250 7 80
ST300/7 300 7 95
ST360/7 360 7 105
ST450/7 450 7 140
ST520/7 520 7 160
ST610/7 610 7 190
ST650/7 650 7 200
ST750/7 750 7 235
ST915/7 915 7 280
ST1000/7 1000 7 315
ST1200/7 1200 7 375
ST1400/7 1400 7 440
ST1600/7 1600 7 500
ST100/12 100 12 25
ST150/12 150 12 43
ST200/12 200 12 50
ST225/12 225 12 60
ST250/12 250 12 70
ST300/12 300 12 80
ST360/12 360 12 100
ST450/12 450 12 135
ST610/12 610 12 185
ST750/12 750 12 230
ST915/12 915 12 295
ST1000/12 1000 12 310
ST1200/12 1200 12 370
ST1400/12 1400 12 425
ST1600/12 1600 12 495
  • Intermediate Lengths available on demand
  • Add Suffix A for 304 Grade : Suffix C for Coated version to Part Nos.
Part No. Coated Uncoated
Minimum Loop Tensile Strength : 7 mm width 54.0 Kgs. (529N) 54.0 Kgs. (529N)
Minimum Loop Tensile Strength : 12 mm width 79.0 Kgs. (778N) 79.0 Kgs. (778N)

Need Customisable Solutions.
